LumiScan BinPick for UR+

Intuitive systems for bin picking and automated object handling of glossy and metallic parts.

Start now

Bin Picking with cobots from UR

Optimised for use with Universal Robots’ cobots, LumiScan BinPick gives you full control and ease of use for your UR robot for automated reach out of the box.

Reliably grip complex objects

  • For metal, glossy surfaces and fiber composites
  • Less occlusions due to multi-camera approach
  • Easy setup and operation – in under 1h to line usage
  • Expand new CAD models of grippers and objects yourself at any time
  • One system of hardware and software

Fast, easy and reliable gripping and placing

Screenshot LumiScan Object Handling Software

Intuitive Software

Control and monitor your bin picking easily via the control unit of your choice: Use LumiScan BinPick either as PC-based software or directly as an application via the UR control panel.

quick setup

Set up the Pick & Place for your Universal Robots Cobot on your own in just a few minutes. The software guides you through the setup step by step.

Quick Setup

Set up the Pick & Place for your Universal Robots Cobot on your own in just a few minutes. The software guides you through the setup step by step.

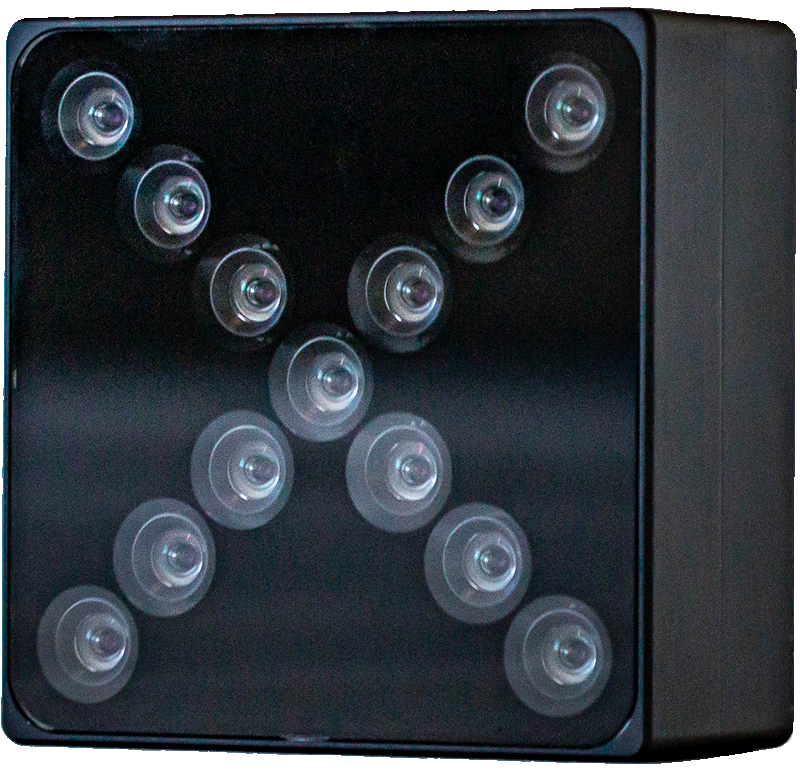

LumiScanX

Powerful hardware

The compact camera array consisting of 13 high-resolution lenses is ideally equipped for use on the factory floor: thanks to IP-54 certification, even splash water and dust do not affect the sensor.

Powerful hardware

The compact camera array consisting of 13 high-resolution lenses is ideally equipped for use on the factory floor: thanks to IP-54 certification, even splash water and dust do not affect the sensor.

LumiScanX

Everything you need to know about LumiScan BinPick

Suitable for any box and part

LumiScan BinPick is available in three different configurations. So you can easily find the right application for any box size and any bulk.

BinPick S

BinPick M
BinPick L

Application examples

Piston Pins

Joint Pins

Bagged goods

Box Size (L x W x H) in mm

600x400x200

800x600x400

1200x800x800

Working Distance in mm

600-1500

850-2250

1650-3000

Spacial Resolution in mm

0.5-0.75

0.7-1.0

0.9-1.4

Z-Accuracy in mm

≤ 0.07

≤ 0.1

≤ 0.14

Start with LumiScan BinPick for UR+ now

Would you like to receive more information or do you have any questions? Please send us your message! We will get back to you as soon as possible.
